Description

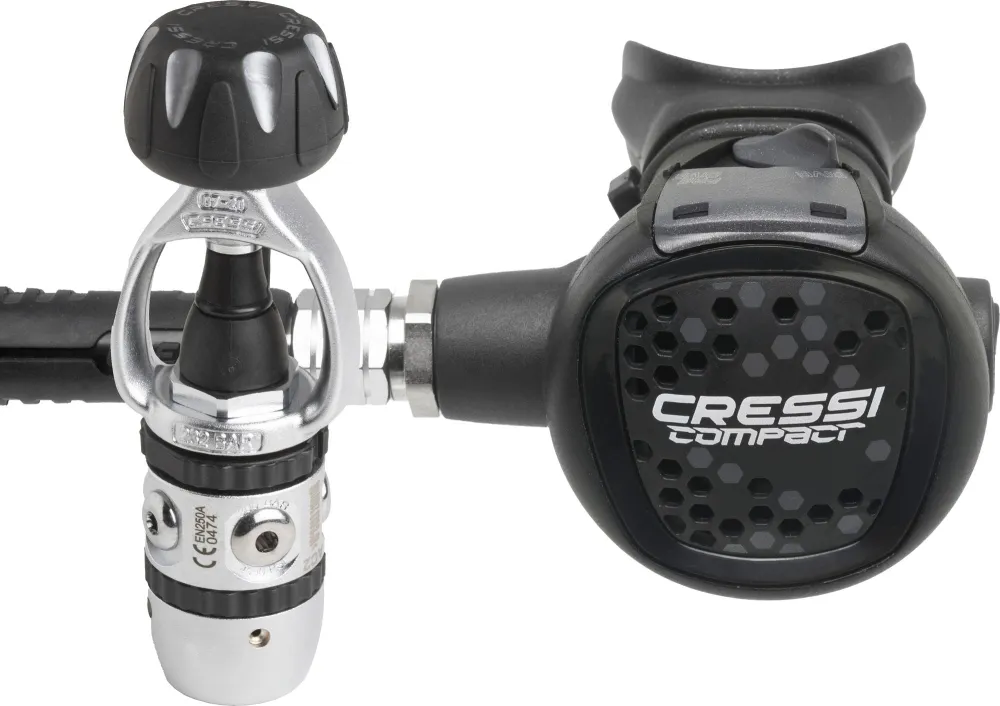

AC2 / Compact [DIN]

The AC2 / Compact [DIN] regulator set combines a robust first stage with a lightweight, high-performance second stage. Built for reliability, easy maintenance, and smooth breathing, it’s ideal for recreational divers, training centres, and travel.

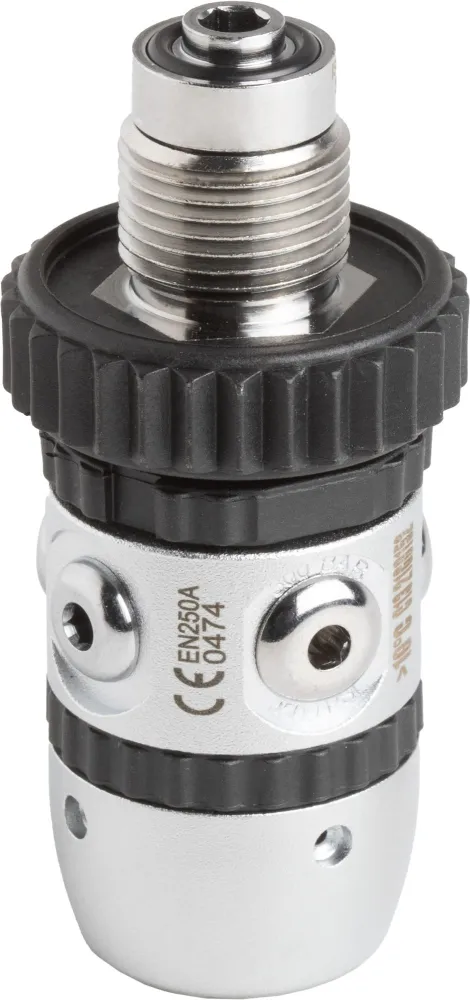

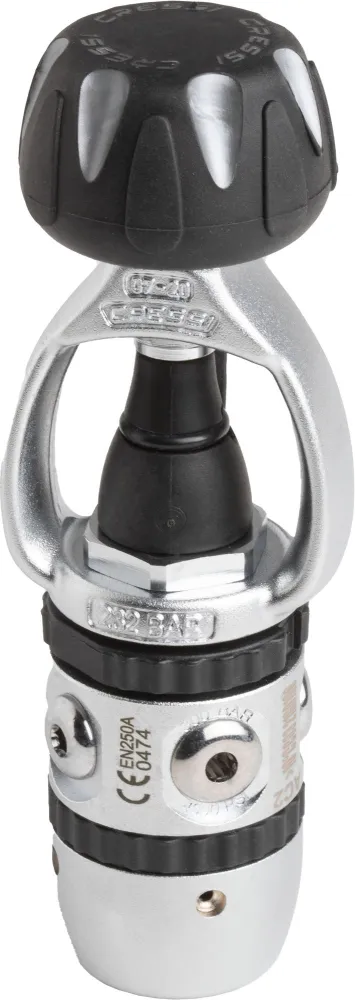

First Stage Features

• Unbalanced piston design for dependable performance
• 1 HP outlet (7/16 UNF) and 4 MP outlets (3/8 UNF)
• Service pressure: 300 bar (DIN) / 232 bar (Yoke)
• Brass body with electroless nickel plating
• High-capacity conical filter, nickel plated
• 316 stainless steel long-lasting piston
• External direct IP adjustment system
• Flow rate: 2100 l/min
• Weight: 495 g (DIN) / 635 g (Yoke)

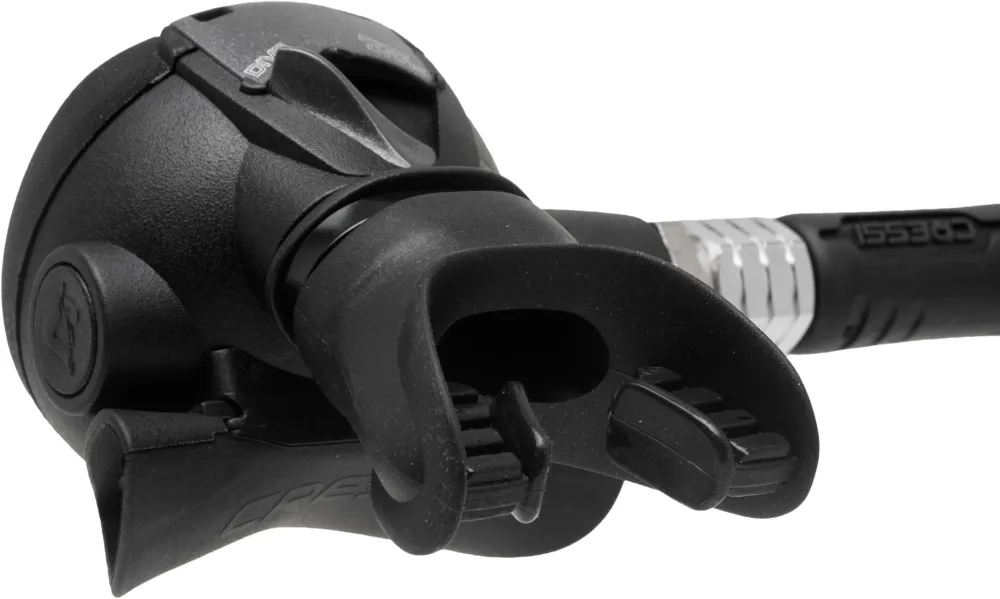

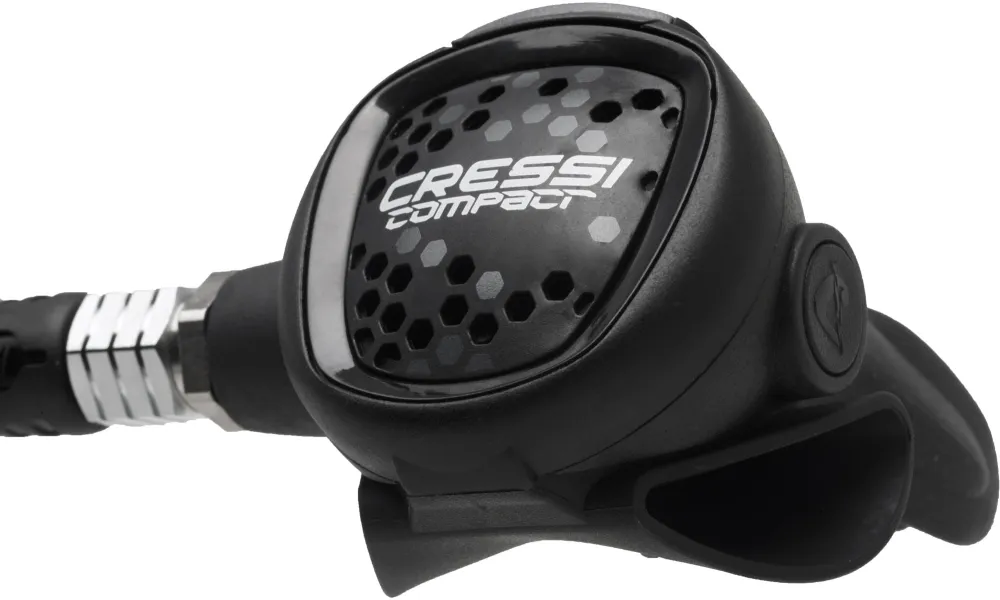

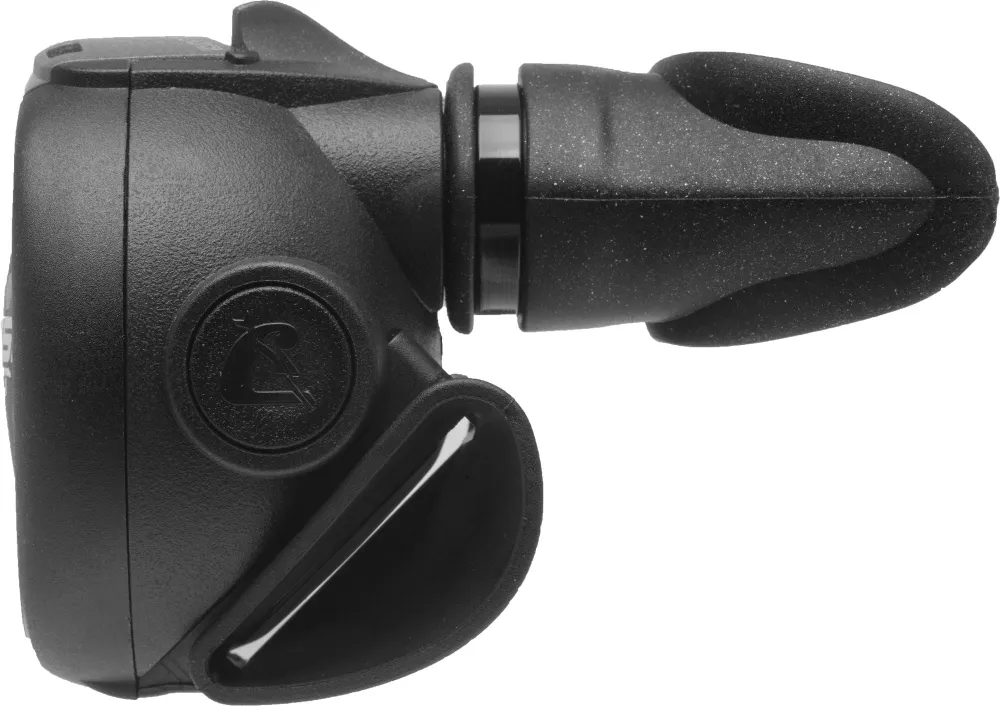

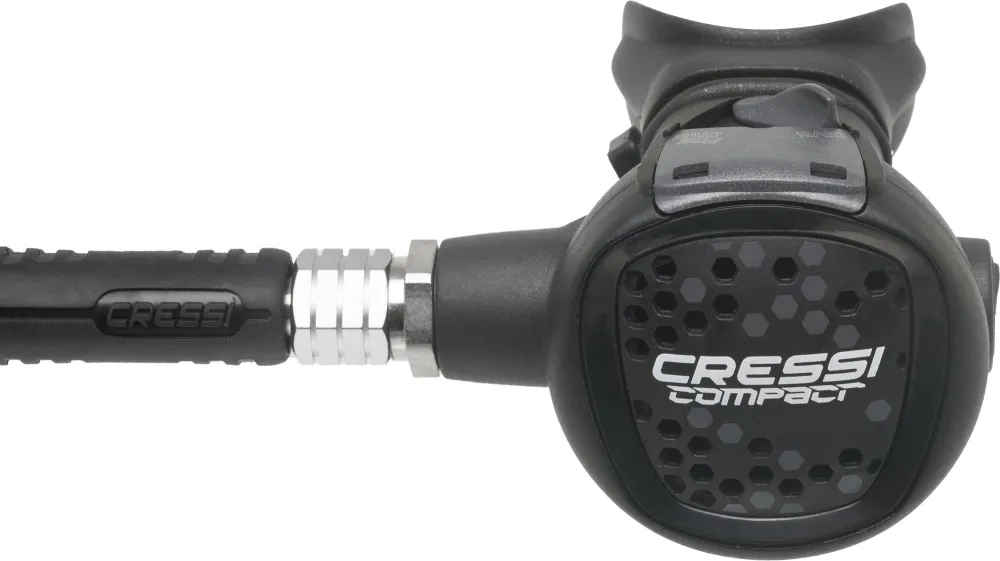

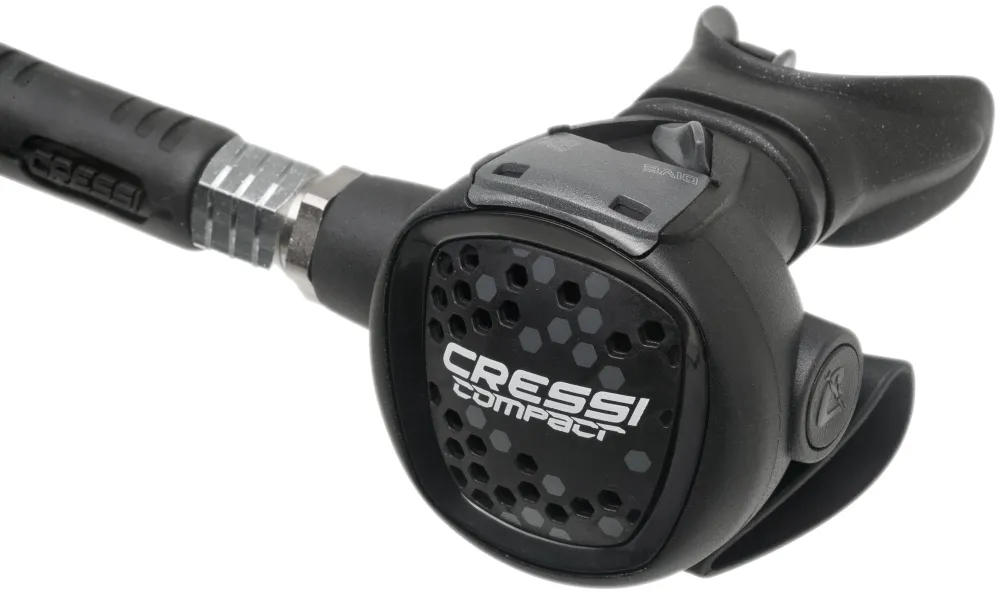

Second Stage Features

• Downstream valve system with adjustable Venturi effect
• Patented antifriction lever
• Large purge button and anti-scratch finish
• Bayonet-type cap holder with security lock
• Removable exhaust tee without tools
• Weight without hose: 135 g
• Light, flexible jacketed hose weight: 153 g
• Certification: EN250:2014 A>10°C
• Total weight with hose: 783 g (DIN) / 923 g (Yoke)
